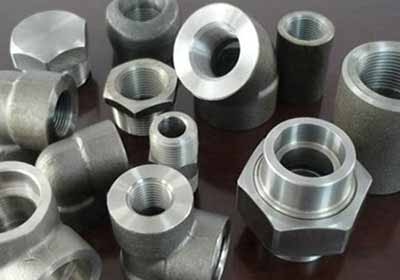

STAINLESS STEEL 904L FORGED FITTINGS

SPECIFICATIONS

SS 904L Socketweld Forged Fittings are available in different grades and standards. Some of the standard features these are made available in include
Specifications : ASTM A182 / ASME SA182
Standard : ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size : 1/8” NB to 4” NB
Pressure Class : 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type : Socketweld Fittings, Screwed-Threaded Fittings



Categories: ,
Contact Us
Request a Quote

904L Stainless Steel Forged Fittings has very good resistance to pitting corrosion, stress corrosion cracking and a much better resistance to crevice corrosion than steels of alloy 304L and alloy 316L. Stainless Steel 904L Forged Socket Weld Cross are also used extensively in the chemical process industry including the production of phosphate - based fertilizers. Stainless Steel 904L Forged Threaded Cross has applications in piping systems, heat exchanges, bleaching systems and pollution control equipment. SS 904L Forged Socket Weld Elbow performs better than other austenitic stainless steels due to the higher alloying of nickel and molybdenum. Stainless Steel 904L Forged Threaded Elbow is non-magnetic, and offers excellent formability, toughness and weldability. SS 904L Forged Socket Weld Teestands up extremely well to chlorides in the environment for low pitting and crevice corrosion, as well as stress corrosion cracking. The addition of copper to Stainless Steel 904L Forged Threaded Tee gives it greatly improved resistance to strong reducing acids, particularly sulphuric acid.

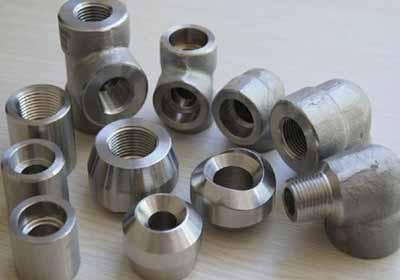

LIST OF STAINLESS STEEL 904L FORGED FITTINGS

Stainless Steel 904L Forged Socket Weld Fittings has been further application proved over many years and was originally developed to resist corrosion in dilute sulfuric acid. SS 904L Forged Threaded Fitting is a high Ni and Mo austenitic grade with very high resistance to corrosion. We are a known distributor of SS 904L Pipe Fittings, which is intended for use under severe corrosive conditions.



Equivalent Grades for 904L Stainless Steel Threaded Fittings

Grade UNS No Old British Euronorm Swedish SS Japanese JIS
BS En No Name
904L N08904 904S13 X1NiCrMoCu25-20-5 1.4539 – – SUS 890L



904L SS Forged Fittings Chemical Composition

Grade C Mn Si P S Cr Mo Ni N
904L min. – – – – – 19.0 4.00 23.00 0.10
max. 0.20 2.00 1.00 0.045 0.035 23.0 5.00 28.00 0.25



SS 904L Socketweld Fitting Mechanical Properties

Grade Tensile Strength (MPa) min Yield Strength 0.2% Proof (MPa) min Elongation (% in 50mm) min Hardness
Rockwell B (HR B) max Brinell (HB) max
904L 490 220 35 70-90 typical –
