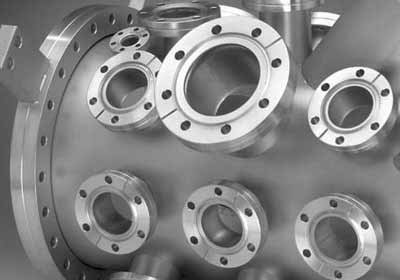

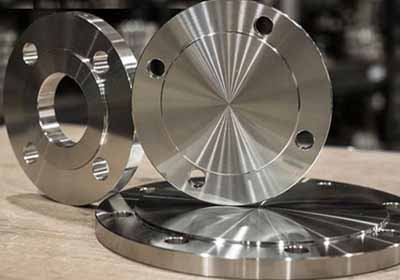

STAINLESS STEEL 347/347H FLANGES

SPECIFICATIONS

SS Flanges are available in different grades and standards. Some of the standard features these are made available in include
Specifications : ASTM A182 / A240, ASME SA182 / SA240
Standard : ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges etc.
Dimensions : ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Size : 1/2″ (15 NB) to 48″ (1200NB)
Pressure Ratings : Class 150, Class 300, Class 400, Class 600, Class 900, Class1500, Class 2500 | PN6, PN10, PN16, PN25, PN40, PN64 etc
Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)



Categories: ,
Contact Us
Request a Quote

These Stainless Steel 347H Orifice Flanges offers good resistance to polythionic acid stress corrosion cracking, encountered in oil refineries. The use of slow speeds and constant positive feeds will minimize the tendency of our SS 347 Threaded Flanges to work harden. These Stainless Steel 347H Socket Weld Flanges should be considered for applications requiring intermittent heating between 800 Degree F (427 Degree C) and 1650 Degree F (899 Degree C), or for welding under conditions which prevent a post-weld anneal. Our Stainless Steel 347 Weld Neck Flanges is columbium stabilized austenitic stainless steel plate with good general corrosion resistance and somewhat better resistance in strong oxidizing conditions than 321. Other applications where these SS 347H Blind Raised Flanges are chosen are boilers, jet engine parts, exhaust manifolds, mufflers for large engines and other various welded parts.



LIST OF STAINLESS STEEL 347/347H FLANGES

Applications that consistently used our Stainless Steel 347 Slip On Raised Flanges include: Heavy duty exhaust systems, High temperature chemical processes, General refinery piping, Heat exchanger tubes, High pressure steam pipes, High temperature steam service, Radiant superheaters, and so on. The additions of these elements in these SS 347H Weld Neck Flanges promote improved inter-granular corrosion resistance. The addition of columbium produces a stabilized type of Stainless Steel 347 Flangesthat eliminates carbide precipitation, and consequently, intergranular corrosion. We are a known dealer of SS 347 / 347H Flanges, which is weldable by common fusion and resistance methods.



Equivalent Grades for 347/347H SS Flanges

Grade UNS No Old British Euronorm Swedish SS Japanese JIS
BS En No Name
347 S34700 – X6CrNiNb18-10 1.4550 – – –



347/347H Stainless Steel Flanges Chemical Composition

Grade C Mn Si P S Cr Mo Ni N
347 min. – – – – – 17.0 2.00 9.0 –
max. 0.08 2.0 1.00 0.045 0.030 20.0 3.00 13.0 –



SS 347/347H Flanges Mechanical Properties

Grade Tensile Strength (MPa) min Yield Strength 0.2% Proof (MPa) min Elongation (% in 50mm) min Hardness
Rockwell B (HR B) max Brinell (HB) max
347 515 205 40 95 201
