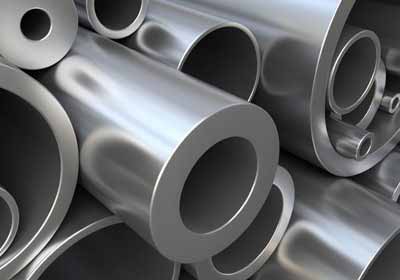

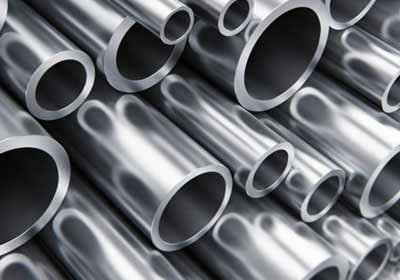

STAINLESS STEEL 321/321H PIPES

SPECIFICATIONS

321/321H Welded Pipes are available in different grades and standards. Some of the standard features these are made available in include
Specifications : ASTM A 312 ASME SA 312 / ASTM A 358 ASME SA 358
Dimensions : ASTM, ASME and API
Size : 1/8″NB TO 30″NB IN
SS Pipes : 1/2″ NB – 16″ NB
SS ERW Pipes : 1/2″ NB – 24″ NB
SS EFW Pipes : 6″ NB – 100″ NB
Specialized in : Large Diameter Size
Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Form : Round, Square, Rectangular, Hydraulic Etc
Length : Single Random, Double Random & Cut Length
End : Plain End, Beveled End, Treaded
Type : Seamless / ERW / Welded / Fabricated / LSAW Pipes



Categories: ,
Contact Us
Request a Quote

Stainless steel 321 Welded Pipe is similar to type 304 stainless but with a titanium addition of at least five times the carbon content. SS 321 Seamless Pipe cannot be hardened by thermal treatment. SS 321H Pipes is a heat resistant, titanium stabilized, austenitic alloy that's commonly used for service in the 1000 – 1600 Degree F temperature range. Stainless steel 321 Pipes is readily welded by all common methods including submerged arc. We are a distinguished supplier and stockiest of SS 321 / 321H Pipe, where we offer the same at standard and customized sizes.



LIST OF STAINLESS STEEL 321/321H PIPES

Stainless steel 321 Welded Pipe is similar to type 304 stainless but with a titanium addition of at least five times the carbon content. SS 321 Seamless Pipe cannot be hardened by thermal treatment. SS 321H Pipes is a heat resistant, titanium stabilized, austenitic alloy that's commonly used for service in the 1000 – 1600 Degree F temperature range. Stainless steel 321 Pipes is readily welded by all common methods including submerged arc. We are a distinguished supplier and stockiest of SS 321 / 321H Pipe, where we offer the same at standard and customized sizes.



Equivalent Grades for 321/321H Stainless Steel Pipe

Grade North America France European Japan Russia European Italy Austria Sweden
UNS AFNOR W.N. JIS GOST EN UNI ONORM SIS
SS 321 S32100 – 1.4541 SUS 321 – X6CrNiTi18-10 – – –



321/321H SS Welded Pipes Chemical Composition

Grade C Mn Si P S Cr N Ni Tie
SS TP 321 0.08 max 2.0 max 1.0 max 0.045 max 0.030 max 17.00 – 19.00 0.10 max 9.00 – 12.00 5(C+N) – 0.70 max



Stainless Steel 321/321H Seamless Pipe Mechanical Properties

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.0 g/cm3 1457 °C (2650 °F) Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 35 %
