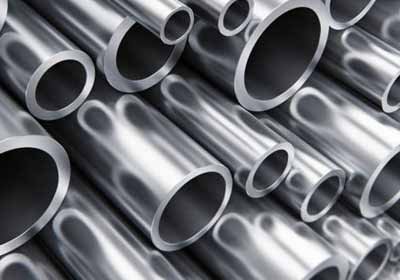

STAINLESS STEEL 317/317L PIPES

SPECIFICATIONS

317/317L Welded Pipes are available in different grades and standards. Some of the standard features these are made available in include
Specifications : ASTM A 312 ASME SA 312 / ASTM A 358 ASME SA 358
Dimensions : ASTM, ASME and API
Size : 1/8″NB TO 30″NB IN
SS Pipes : 1/2″ NB – 16″ NB
SS ERW Pipes : 1/2″ NB – 24″ NB
SS EFW Pipes : 6″ NB – 100″ NB
Specialized in : Large Diameter Size
Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Form : Round, Square, Rectangular, Hydraulic Etc
Length : Single Random, Double Random & Cut Length
End : Plain End, Beveled End, Treaded
Type : Seamless / ERW / Welded / Fabricated / LSAW Pipes



Categories: ,
Contact Us
Request a Quote

Stainless Steel 317L Electropolish Pipes are slightly improved corrosion resistance over other alloys of stainless steel in strongly oxidizing environments as a result of the addition of columbium (niobium) and tantalum. SS 317 Rectangular Pipes has a columbium (niobium)/tantalum stabilized austenitic chromium-nickel stainless steel which was developed to provide an 18-8 type alloy with improved intergranular-corrosion resistance. Stainless Steel 317L Square Pipesoffers higher creep and stress rupture properties than Alloy 304 and, particularly which might also be considered for exposures where sensitization and intergranular corrosion are concerns.

Stainless Steel 317L Round Pipes is resistant to sulfuric acid concentrations up to 5 percent at temperatures as high as 120°f (49°c) at temperatures under 100°f (38°c) this alloy has excellent resistance to solutions of higher concentration. SS 317 ERW Pipes has excellent corrosion resistance in a wide range of chemicals, especially in acidic chloride environments such as those encountered in pulp and paper mills.



LIST OF STAINLESS STEEL 317/317L PIPES

Elements with a lower percentage i.e. less that 5 % are added in our Stainless Steel 316Ti Square Pipes to increase the strength and harden ability and in larger percentage to achieve special properties like corrosion resistance, high temperature sustainability, and high yield and impact results. These SS 316Ti Rectangular Pipes is a heat resistant, titanium stabilized, austenitic alloy that's commonly used for service in the 1000 ° F - 1600 ° F temperature range.



Equivalent Grades for 317/317L Stainless Steel Pipe

Grade UNS No Old British Euronorm Swedish SS Japanese JIS
BS En No Name
317 S31700 – – 1.4449 – – –



317/317L SS Welded Pipes Chemical Composition

Grade C Mn Si P S Cr Mo Ni N
317 min. – – – – – 18.0 – 11.0 –
max. 0.8 2.0 1.00 0.040 0.03 20.0 14.0 –



Stainless Steel 317/317L Seamless Pipe Mechanical Properties

Grade Tensile Strength (MPa) min Yield Strength 0.2% Proof (MPa) min Elongation (% in 50mm) min Hardness
Rockwell B (HR B) max Brinell (HB) max
317 515 205 35 95 217



Stainless Steel 317/317L Pipes Physical Properties

Grade Density (kg/m3) Elastic Modulus (GPa) Mean Coefficient of Thermal Expansion (m/m/0C) Thermal Conductivity (W/m.K) Specific Heat 0-1000C (J/kg.K) Electrical Resistivity (n.m)
0-1000C 0-3150C 0-5380C at 1000C at 5000C
317 8000 193 17.2 17.8 18.4 16.2 21.5 500 720
