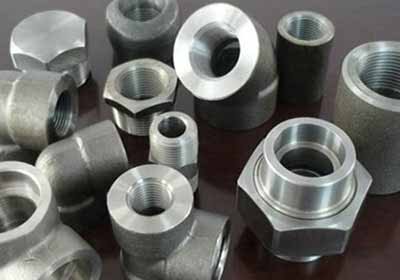

STAINLESS STEEL 316TI FORGED FITTINGS

SPECIFICATIONS

SS 316Ti Socketweld Forged Fittings are available in different grades and standards. Some of the standard features these are made available in include
Specifications : ASTM A182 / ASME SA182
Standard : ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size : 1/8” NB to 4” NB
Pressure Class : 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type : Socketweld Fittings, Screwed-Threaded Fittings



Categories: ,
Contact Us
Request a Quote

Benefits of using these 316Ti Stainless Steel Forged Socket Weld Fittings include increased carbon content heat resistant qualities. The corrosion resistance of our 316Ti SS Forged Threaded Fittings is comparable to Alloy316 / Alloy 316L and is superior to Alloy 304 / Alloy 304L in moderately corrosive environments. These SS 316Ti Forged Socket Weld Elbow are molybdenum-bearing austenitic stainless steel which are more resistant to general corrosion and pitting / crevice corrosion than the conventional chromium nickel austenitic stainless steel such as Type 304. Our SS 316Ti Forged Threaded Elbow is often used in Pharmaceutical and textile industries, Heat exchangers, Condensers, evaporators and tanks. Corrosion Resistance of these SS 316Ti Forged Socket Weld Tee is excellent in a range of atmospheric environments and many corrosive media - generally more resistant than 304. Our Stainless Steel 316Ti Forged Threaded Tee is often used in Oil & petroleum refining equipment, Aerospace Structures, Food processing equipment, etc.

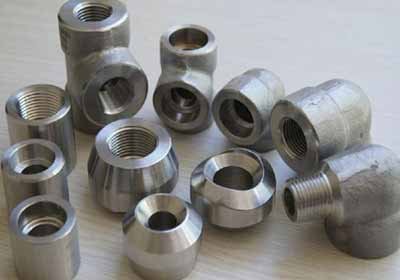

LIST OF STAINLESS STEEL 316TI FORGED FITTINGS

These Stainless Steel 316Ti Forged Socket Weld Fittings also has outstanding welding characteristics, where post-weld annealing is not required when welding thin sections. The fact that it is negligibly responsive to magnetic fields means that our SS 316Ti Forged Threaded Fittings can be used in applications where a non - magnetic metal is required. We are a known distributor of these SS 316Ti Forged Fittings, which has improved wear resistance and fatigue strength.



Equivalent Grades for 316Ti Stainless Steel Threaded Forged Fitting

Grade UNS No Old British Euronorm GOST Japanese JIS
BS En No AFNOR
316Ti S31635 320S31 X6CrNiMoTi17-12-2 1.4571 Z6CNDT17‐12 08Ch17N13M2T SUS 316Ti



316Ti SS Socketweld Forged Fittings Chemical Composition

Grade C Mn Si P S Cr Mo Ni N
316Ti min. – – – – – 16.0 2.00 10.0 –
max. 0.08 2.0 0.75 0.045 0.030 18.0 3.00 14.0 –



SS 316Ti Forged Fitting Mechanical Properties

Grade Tensile Strength (MPa) min Yield Strength 0.2% Proof (MPa) min Elongation (% in 50mm) min Hardness
Rockwell B (HR B) max Brinell (HB) max
316Ti 515 205 35 75 205
