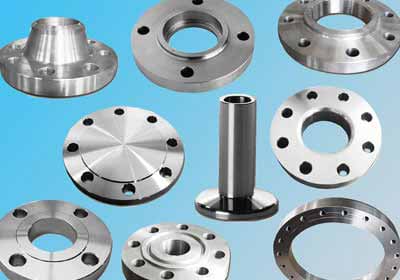

STAINLESS STEEL 316L FLANGES

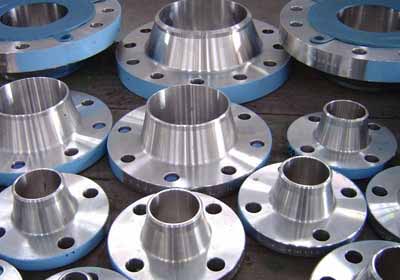

STAINLESS STEEL 316L FLANGES - Image 2

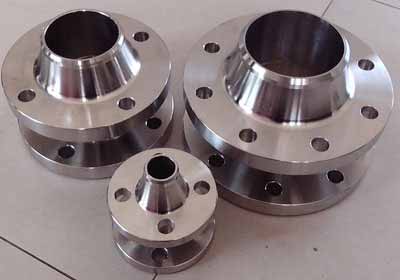

STAINLESS STEEL 316L FLANGES - Image 3

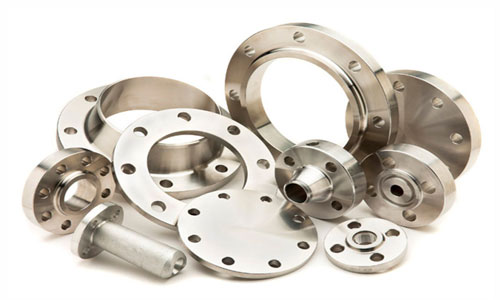

STAINLESS STEEL 316L FLANGES - Image 4

STAINLESS STEEL 316L FLANGES

SPECIFICATIONS

SS Flanges are available in different grades and standards. Some of the standard features these are made available in include
Specifications : ASTM A182 / A240, ASME SA182 / SA240
Standard : ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges etc.
Dimensions : ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Size : 1/2″ (15 NB) to 48″ (1200NB)
Pressure Ratings : Class 150, Class 300, Class 400, Class 600, Class 900, Class1500, Class 2500 | PN6, PN10, PN16, PN25, PN40, PN64 etc
Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)



Categories: ,
Contact Us
Request a Quote

SS 316L Slip On Raised Flanges is used for food preparation equipment particularly in chloride environments. Stainless Steel 316L Blind Raised Flanges is also used in marine applications and architectural applications near the seashore or in urban areas. Stainless Steel 316L Weld Neck Flanges is very frequently used in heavy gauge welded components. In case of welded applications, SS 316L Socket Weld Flanges are used for light-gauge applications. The Molybdenum in Stainless Steel 316L Threaded Flanges is the alloy composition provides excellent strength up through 800 ° F in applications. SS 316L Lap Joint Flanges is subject to work hardening during deformation and is subject to chip breaking. Stainless Steel 316L Ring Joint Type Flanges have excellent weld-ability, with or without the addition of filler metal. SS 316L Orifice Flanges is important to make sure that copper and zinc do not become contaminants at the site of welds, as this can create cracking.



LIST OF STAINLESS STEEL 316L FLANGES

Stainless Steel 316L Spectacle Blind Flanges is extensively used in the oil and gas and chemical industries for its cost effective corrosion resistance and ease of fabrication. SS 316L Nippo Flanges is non-magnetic in the annealed condition and not hardenable by heat treatment. 316L Stainless Steel Flanges has much higher resistance to chlorides at elevated temperatures, and higher strength. In more corrosive environments, SS 316L Nippo Flanges may be a more suitable option for extra protection against pitting and crevice corrosion.



Equivalent Grades for 316L SS Flanges

Grade UNS No Old British Euronorm Swedish SS Japanese JIS
BS En No Name
316 – 316L S31600/S31603 304S11 58E 1.4401 / 1.4436 X5CrNiMo17-12-2 / X3CrNiMo17-13-3 2347 / 2348 SUS 316 – 316L



316L SS Flanges Chemical Composition

Grade C Mn Si P S Cr Mo Ni N
316 – 316L min. – – – – – 16.0 2.0 10.0 –
max. 0.08 2.0 0.75 0.045 0.03 18.0 3.0 14.0 0.10



SS 316L Flanges Mechanical Properties

Grade Tensile Strength (MPa) min Yield Strength 0.2% Proof (MPa) min Elongation (% in 50mm) min Hardness
Rockwell B (HR B) max Brinell (HB) max
316 – 316L 515 205 40 95 217
