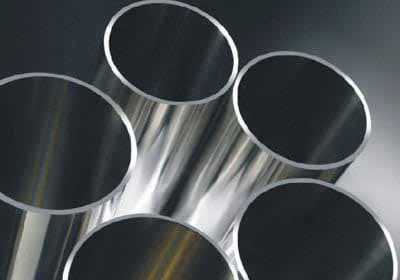

STAINLESS STEEL 310H PIPES

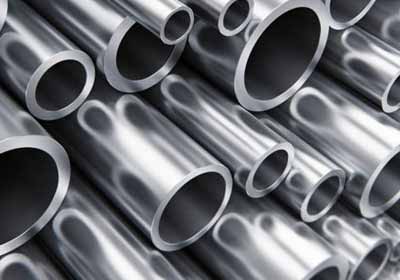

STAINLESS STEEL 310H PIPES - Image 2

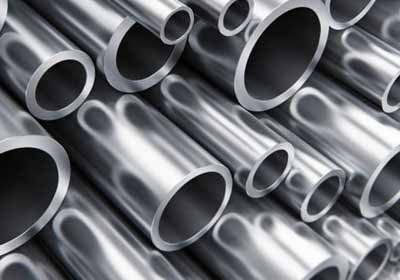

STAINLESS STEEL 310H PIPES - Image 3
STAINLESS STEEL 310H PIPES - Image 4

STAINLESS STEEL 310H PIPES

SPECIFICATIONS

310H Seamless Pipes are available in different grades and standards. Some of the standard features these are made available in include
Specifications : ASTM A 312 ASME SA 312 / ASTM A 358 ASME SA 358
Dimensions : ASTM, ASME and API
Size : 1/8″NB TO 30″NB IN
SS Pipes : 1/2″ NB – 16″ NB
SS ERW Pipes : 1/2″ NB – 24″ NB
SS EFW Pipes : 6″ NB – 100″ NB
Specialized in : Large Diameter Size
Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Form : Round, Square, Rectangular, Hydraulic Etc
Length : Single Random, Double Random & Cut Length
End : Plain End, Beveled End, Treaded
Type : Seamless / ERW / Welded / Fabricated / LSAW Pipes



Categories: ,
Contact Us
Request a Quote

Stainless Steel 310H Seamless Pipes are touted to be as a high carbon adjustment created for enhanced creep resistance. Stainless Steel 310H Welded Pipes have less pressure loss and reduce friction when the bore is opened entirely and are bi-directional. SS 310H EFW Pipes are prone to sigma phase embrittlement in the temperature range 650 ° C – 900 ° C. Stainless Steel 310H ERW Pipes has good resistance to oxidation at temperatures of up to 1040 ° C (1904 ° F) in intermittent service and 1150 ° C (2102 ° F) in continuous service. However, an understanding of the attributes of Stainless Steel 310H Round Pipes provides an excellent base for comparing members of the austenitic family of stainless steels. These, Stainless Steel 310H Square Pipes work hardens, where severe forming operations should be followed by anneal. After hot forming in Stainless Steel 310H Rectangular Pipes, a final anneal at 1832 ° F – 2101 ° F (1000 ° C – 1150 ° C) followed by rapid quenching is recommended.



LIST OF STAINLESS STEEL 310H PIPES

Stainless Steel 310H Electropolish Pipes are being used in the most significant engineering purposes and as well in certain functions in the automotive segment. SS 310H Hexagonal Pipes has good resistance to oxidation in intermittent service in air at temperatures up to 1040 ° C and 1150 ° C in continuous service. 310H Stainless Steel Pipes is often used in food processing industry, where it is further used in contact with hot acetic and citric acid.



Equivalent Grades for 310H Stainless Steel Pipe

Grade UNS No Old British Euronorm Swedish SS Japanese JIS
BS En No Name
310H S31009 – – – – – –



310H SS Welded Pipes Chemical Composition

Grade C Mn Si P S Cr Mo Ni N
310H min. 0.04 – – – – 24.0 – 19.0 –
max. 0.10 2.0 1.00 0.045 0.03 26.0 21.0 –



Stainless Steel 310H Seamless Pipe Mechanical Properties

Grade Tensile Strength (MPa) min Yield Strength 0.2% Proof (MPa) min Elongation (% in 50mm) min Hardness
Rockwell B (HR B) max Brinell (HB) max
310H 515 205 40 95 217



Stainless Steel 310H Pipes Physical Properties

Grade Density (kg/m3) Elastic Modulus (GPa) Mean Coefficient of Thermal Expansion (m/m/0C) Thermal Conductivity (W/m.K) Specific Heat 0-1000C (J/kg.K) Electrical Resistivity (n.m)
0-1000C 0-3150C 0-5380C at 1000C at 5000C
310H 8000 193 17.2 17.8 18.4 16.2 21.5 500 720
