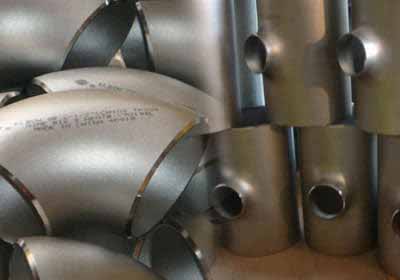

STAINLESS STEEL 304L PIPE FITTING

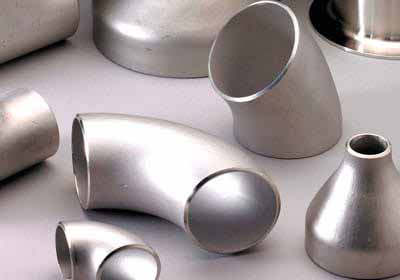

STAINLESS STEEL 304L PIPE FITTING - Image 2
STAINLESS STEEL 304L PIPE FITTING - Image 3

STAINLESS STEEL 304L PIPE FITTING

SPECIFICATIONS

SS 304L Pipe Fitting are available in different grades and standards. Some of the standard features these are made available in include
Specifications : ASTM A403 / ASME SA403
Dimensions : ANSI/ASME B16.9, B16.28, MSS-SP-43
Size : 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated)
Type : Seamless / Welded / Fabricated
Thickness : 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS available with NACE MR 01-75



Categories: ,
Contact Us
Request a Quote

Stainless Steel 304L Butt Weld Fittings has a high ease of fabrication and outstanding formability. Stainless Steel 304L Elbow can be used in the welded condition as opposed to the annealed condition. Low content of carbon in SS 304L Tee eliminates carbon precipitation in the welding process. For the thermal numeric model, an inverse analysis of experimental data of transient temperature history at specific locations during SS 304L Cross was performed. Stainless Steel 304L Reducer is an excellent choice for various applications and industries such as food and drink processing. Stainless Steel 304L Benddoes not respond to heat treatment. Solution treatment or annealing of Stainless Steel 304L Stub End can be done by rapid cooling after heating to 1010 Degree C – 1120 Degree C. Stainless Steel 304L End Cap is subject to work hardening during deformation and is subject to chip breaking.



LIST OF STAINLESS STEEL 304L PIPE FITTING

Stainless Steel 304L Dish Cap is available in wide range because of their ability to withstand the corrosive action of various acids. Stainless Steel 304L Eccentric Reducer are heat treated to remove the effects of cold forming or to dissolve precipitated chromium carbides. The low carbon in these SS 304L Concentric Reducer helps improve weldability as compared to the Stainless Steel 304 Pipe Fittings as well as improved corrosion resistance. This SS 304L Lateral Tee are also used for a number of applications in a number of industries.



Equivalent Grades for 304L Stainless Steel Pipe Fittings

Grade UNS No Old British Euronorm Swedish SS Japanese JIS
BS En No Name
304L S30403 304S11 58E 1.4301 X5CrNi18-10 2332 SUS 304L



304L SS Welded Buttweld Fittings Chemical Composition

Grade C Mn Si P S Cr Mo Ni N
304L min. – – – – – 18.0 – 8.0 –
max. 0.03 2.0 1.00 0.045 0.03 20.0 12.0 –



Stainless Steel 304L Seamless Pipe Fitting Mechanical Properties

Grade Tensile Strength (MPa) min Yield Strength 0.2% Proof (MPa) min Elongation (% in 50mm) min Hardness
Rockwell B (HR B) max Brinell (HB) max
304L 485 170 40 92 201
