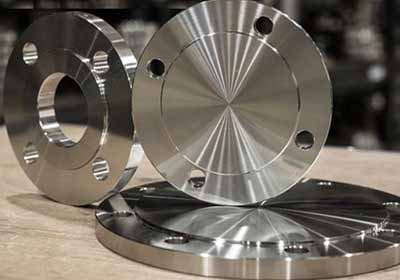

STAINLESS STEEL 304L FLANGES

SPECIFICATIONS

SS Flanges are available in different grades and standards. Some of the standard features these are made available in include
Specifications : ASTM A182 / A240, ASME SA182 / SA240
Standard : ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges etc.
Dimensions : ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Size : 1/2″ (15 NB) to 48″ (1200NB)
Pressure Ratings : Class 150, Class 300, Class 400, Class 600, Class 900, Class1500, Class 2500 | PN6, PN10, PN16, PN25, PN40, PN64 etc
Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)



Categories: ,
Contact Us
Request a Quote

Stainless Steel 304L Slip On Raised Flanges can be welded by all fusion and resistance welding processes. Stainless Steel 304L Blind Raised Flanges resists corrosion and is often used in the food industry. SS 304L Weld Neck Flanges has welded annealing only required in high stress applications. Stainless Steel 304L Threaded Flanges has excellent weld-ability characteristics with or without the addition of filler metals. Bending in SS 304L Socket Weld Flanges will be responsible for distortions, upon the release of the piece from the clamping system. Stainless Steel 304L Lap Joint Flanges has excellent corrosion resistance at normal temperatures in ordinary atmospheric conditions withstanding some natural acids. Cold work in these SS 304L Ring Joint Type Flanges will cause an increase in both hardness and strength. Heavy welded sections in our SS 304L Orifice Flanges may require post-weld annealing.

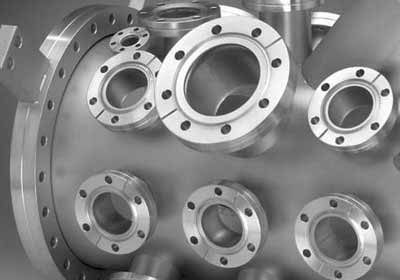

LIST OF STAINLESS STEEL 304L FLANGES

A post weld heat treatment in these Stainless Steel 304L Spectacle Blind Flanges is not necessary. Our Stainless Steel 304L Nippo Flanges is used for medical or pharmaceutical processing for environments such as clean rooms. Cooling of these Stainless Steel 304L Spacer Flanges from the anneal temperature should be at sufficiently high rates through 1500 Degree F – 800 Degree F (816 Degree C – 427 Degree C) to avoid precipitation of chromium carbides. Our SS 304L Plate Flanges is one of the most widely used stainless steels showing up in just about every industry.



Equivalent Grades for 304L Stainless Steel Flanges

Grade UNS No Old British Euronorm Swedish SS Japanese JIS
BS En No Name
304L S30403 304S11 58E 1.4306/1.4307 X5CrNi18-10 2332 SUS 304L



304L SS Flanges Chemical Composition

Grade C Mn Si P S Cr Mo Ni N
304L min. – – – – – 18.0 – 8.0 –
max. 0.03 2.0 1.00 0.045 0.03 20.0 12.0 –



SS 304L Flanges Mechanical Properties

Grade Tensile Strength (MPa) min Yield Strength 0.2% Proof (MPa) min Elongation (% in 50mm) min Hardness
Rockwell B (HR B) max Brinell (HB) max
304L 485 170 40 92 201
