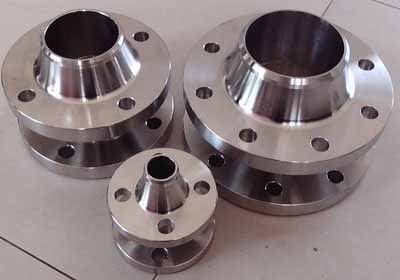

STAINLESS STEEL 304H FLANGES

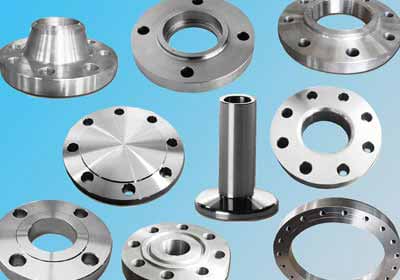

STAINLESS STEEL 304H FLANGES - Image 2

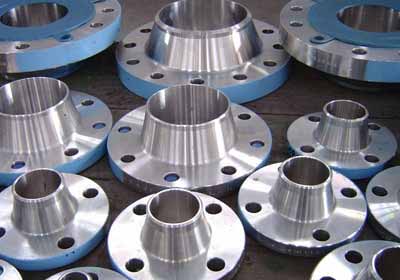

STAINLESS STEEL 304H FLANGES - Image 3

STAINLESS STEEL 304H FLANGES

SPECIFICATIONS

SS Flanges are available in different grades and standards. Some of the standard features these are made available in include
Specifications : ASTM A182 / A240, ASME SA182 / SA240
Standard : ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges etc.
Dimensions : ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Size : 1/2″ (15 NB) to 48″ (1200NB)
Pressure Ratings : Class 150, Class 300, Class 400, Class 600, Class 900, Class1500, Class 2500 | PN6, PN10, PN16, PN25, PN40, PN64 etc
Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)



Categories: ,
Contact Us
Request a Quote

Stainless Steel 304H Slip On Raised Flanges can be welded by all fusion and resistance welding processes. Stainless Steel 304H Blind Raised Flanges resists corrosion and is often used in the food industry. SS 304H Weld Neck Flanges has welded annealing only required in high stress applications. Stainless Steel 304L Threaded Flanges has excellent weld-ability characteristics with or without the addition of filler metals. Bending in Stainless Steel 304H Socket Weld Flanges will be responsible for distortions, upon the release of the piece from the clamping system. SS 304H Lap Joint Flanges has excellent corrosion resistance at normal temperatures in ordinary atmospheric conditions withstanding some natural acids. Cold work in these Stainless Steel 304H Ring Joint Type Flanges will cause an increase in both hardness and strength. Heavy welded sections in our SS 304H Orifice Flanges may require post-weld annealing. A post weld heat treatment in these Stainless Steel 304H Spectacle Blind Flanges is not necessary.



LIST OF STAINLESS STEEL 304H FLANGES

Our Stainless Steel 304H Nippo Flanges is used for medical or pharmaceutical processing for environments such as clean rooms. Cooling of these SS 304H Spacer Flanges from the anneal temperature should be at sufficiently high rates through 1500 Degree F – 800 Degree F (816 Degree C – 427 Degree C) to avoid precipitation of chromium carbides. Our SS 304H Plate Flanges is one of the most widely used stainless steels showing up in just about every industry.



Equivalent Grades for 304H Steel Flanges

Grade UNS No Old British Euronorm Swedish SS Japanese JIS
BS En No Name
304H S30409 304HS31 58E 1.4301 X5CrNi18-10 2332 SUS 304H



304H Stainless Steel Flanges Chemical Composition

Grade C Mn Si P S Cr Mo Ni N
304H min. – – – – – 18.0 – 8.0 –
max. 0.08 2.0 0.75 0.045 0.030 20.0 10.5 0.10



SS 304H Flanges Mechanical Properties

Grade Tensile Strength (MPa) min Yield Strength 0.2% Proof (MPa) min Elongation (% in 50mm) min Hardness
Rockwell B (HR B) max Brinell (HB) max
304H 515 205 40 92 201
