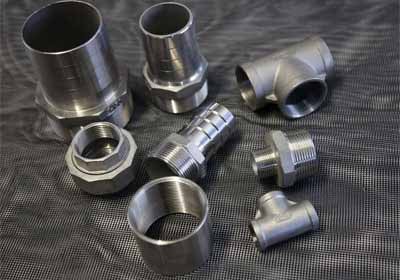

STAINLESS STEEL 316 FORGED FITTINGS

SPECIFICATIONS

SS 316 Socketweld Forged Fittings are available in different grades and standards. Some of the standard features these are made available in include
Specifications : ASTM A182 / ASME SA182
Standard : ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size : 1/8” NB to 4” NB
Pressure Class : 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type : Socketweld Fittings, Screwed-Threaded Fittings



Categories: ,
Contact Us
Request a Quote

With the right alloy such as Stainless Steel 316 Forged Threaded Fittings, you’ll have a metal tray or basket that will boost your productivity for years to come. For example, if your manufacturing plant is located on or near the coast, salty sea air can corrode SS 316 Forged Socket Weld Fittings that isn’t resistant to chlorides. Sensitive and interference-free chemical color tests for SS 316 Forged Threaded Tee Fittings detect the alloying components. Fusion welding performance for Stainless Steel 316 Forged Socket Weld Tee Fittings is excellent both with and without fillers. Near the seashore, Stainless Steel 316 Forged Threaded Elbow is typically considered the minimum grade of for use in such a marine environment. For Solution Treatment (Annealing), heat this Stainless Steel 316 Forged Socket Weld Elbow Fittings for up to 1010 ° C - 1120 ° C and cool rapidly. Stainless Steel 316 Forged Threaded Cross Fittings is often used in architectural applications in highly corrosive environments.

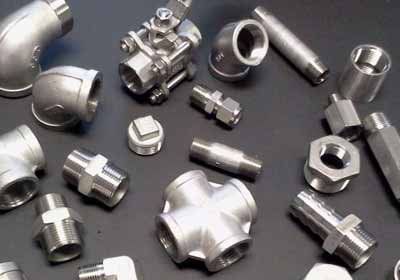

LIST OF STAINLESS STEEL 316 FORGED FITTINGS

Stainless Steel 316 Forged Socket Weld Cross Fittings are more resistant to general corrosion and pitting / crevices than conventional austenitic stainless steels. Cold working operations will increase the strength and hardness of Stainless Steel 316 Forged Threaded Reducer and might leave it slightly magnetic. These SS 316 Forged Socket Weld Reducer is specified for use with high purity products where product contamination must be held to a minimum.



Equivalent Grades for 316 Stainless Steel Threaded Forged Fittings

Grade UNS No Old British Euronorm Swedish SS Japanese JIS
BS En No Name
316 – 316L S31600/S31603 304S11 58E 1.4401 / 1.4436 X5CrNiMo17-12-2 / X3CrNiMo17-13-3 2347 / 2348 SUS 316 – 316L



316 SS Socketweld Forged Fitting Chemical Composition

Grade C Mn Si P S Cr Mo Ni N
316 – 316L min. – – – – – 16.0 2.0 10.0 –
max. 0.08 2.0 0.75 0.045 0.03 18.0 3.0 14.0 0.10



SS 316 Forged Fittings Mechanical Properties

Grade Tensile Strength (MPa) min Yield Strength 0.2% Proof (MPa) min Elongation (% in 50mm) min Hardness
Rockwell B (HR B) max Brinell (HB) max
316 – 316L 515 205 40 95 217
