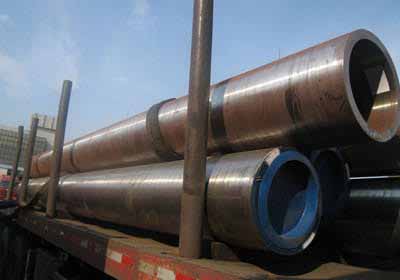

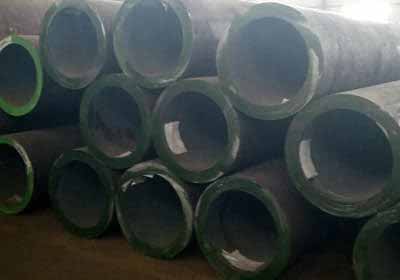

ALLOY STEEL T92 TUBES
ALLOY STEEL T92 TUBES - Image 2
ALLOY STEEL T92 TUBES - Image 3

ALLOY STEEL T92 TUBES

SPECIFICATIONS

AS Seamless Tubes are available in different grades and standards. Some of the standard features these are made available in include
Dimensions : ASTM
Specifications : ASTM A213
Size : 1/8″NB TO 30″NB IN
Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Length : Single Random, Double Random & Cut Length
Form : Round, Square, Rectangular, Hydraulic Etc
End : Plain End, Beveled End, Treaded



Categories: ,
Contact Us
Request a Quote

PT. Cahaya Bina Baja is a distributor of AS T92 Tubes, which is available in various designs. We offer these Alloy Steel T92 Seamless Tubes at nominal price in a confine time frame. Alloy Steel T92 Welded Tubes is extensively used in heavy gauge welded components. We have well-known customers that upsurges to industry in number of countries, and is also quite known as a leader in the industry when it comes to Alloy Steel T92 EFW Tubes with respect to finishing its outstanding quality. Alloy Steel T92 ERW Tubes are used in a variety of industries and are obtainable in varied shapes and sizes. We are the prominent supplier and exporter of Alloy Steel T92 Round Tube, which are well known for its durability, quality, and high tolerance. Alloy Steel T92 Square Tubes is known for its Hard and sturdy, Durable, Sophisticated, and more.



LIST OF ALLOY STEEL T92 TUBES

So as to fulfill ever increasing needs of our customers, we are involved in providing a quality array of Alloy Steel T92 Rectangular Tubes, which has its properties such as to support economical and innovative solutions, can be utilized in all kind of sanitary fittings and obtainable in dissimilar size and shape. Owing to the sound experience of the market, we have been able to come with a premium range of these Alloy Steel T92 Electropolish Tubes, which is available on minimum wall thinning rate.



Alloy Steel Seamless Tubes Tolerance

Outside Diameter OD Tolerance WT Tolerance Ovality Tolerance Cut Length Tolerance
OD≤ 12, 7 mm ± 0, 13 mm ± 15 % – + 3, 18 mm, – 0 mm
12, 7 mm < OD ≤ 38, 1 mm ± 0, 13 mm ± 10 % max, 1, 65 mm + 3, 18 mm, – 0 mm
38, 1 mm < OD ≤ 88, 9 mm ± 0, 25 mm ± 10 % max, 2, 41 mm + 4, 76 mm, – 0 mm



Grade T92 Alloy Steel Seamless Tube Chemical Composition

C, %
Mn, %
P, %
S, %
Si, %
Cr, %
Mo, %
V, %
N, %
Ni, %
Al, %
Nb, %
W, %
B, %
0.07-0.13
0.3-0.6
0.02 max
0.01 max
0.5 max
8.5-9.5
0.3-0.6
0.15-0.25
0.03-0.07
0.4 max
0.04 max
0.04-0.09
1.5-2.0
0.001-0.006



AS Gr. T92 Seamless Tubes Mechanical Properties

Tensile Strength, MPa Yield Strength, MPa Elongation, % Hardness, HB
620 min 440 min 20 min 250 max
