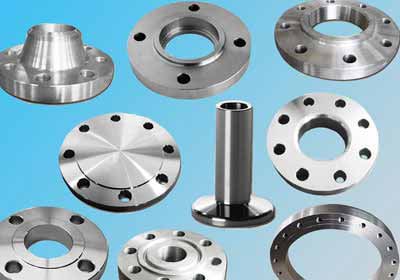

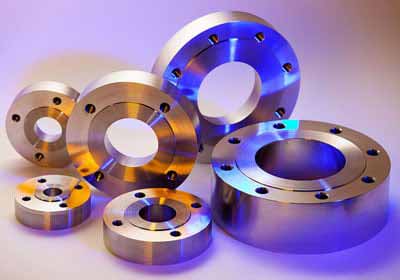

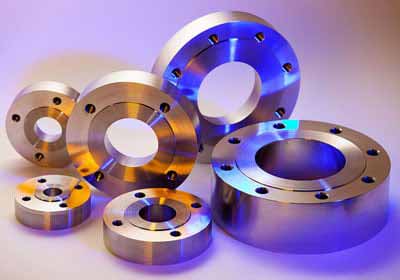

SUPER DUPLEX STEEL S32760 FLANGES
SUPER DUPLEX STEEL S32760 FLANGES - Image 2
SUPER DUPLEX STEEL S32760 FLANGES - Image 3
SUPER DUPLEX STEEL S32760 FLANGES - Image 4

SUPER DUPLEX STEEL S32760 FLANGES

SPECIFICATIONS

Super Duplex Flanges are available in different grades and standards. Some of the standard features these are made available in include
Specifications : ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc
Standard : ASTM A182 / ASME SA182
Dimensions : ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc
Size : ½” to 24″
Class : 150#, 300#, 600#, 900#, 1500#, 2500#
Form : Slip on Flanges – SORF, Weld neck Flanges – WNRF, Socket weld Flanges – SWRF, Blind Flanges – BLRF Lapped joint Flanges, Screwed Flanges, Long weld neck Flanges, Reducing Flanges, Spectacle Flanges, Ring joint Flanges

Category:
Contact Us
Request a Quote

PT. Cahaya Bina Baja is a distributor of Duplex Steel UNS S32760 Flanges, which can be easily machined and welded. These Super Duplex UNS S32760 Slip On Raised Flanges offers exceptional conflict to inanimate acids, expressly those encompassing chlorides. Our Super Duplex UNS S32760 Blind Raised Flanges has excellent resistance to stress corrosion cracking in chloride containing environments. These Super Duplex UNS S32760 Weld Neck Flanges has prospect for weight decrease over standard duplex, nickel base and austenitic alloys. A number of welding approaches in our Super Duplex UNS S32760 Socket Weld Flanges are appropriate in the similar way as by means of the customary austenitic steels, containing sheltered metal arc soldering, plasma fusing and TIG repairing. These Super Duplex UNS S32760 Threaded Flanges can be solution annealed at 1110 ºC – 1140 ºC, water quench. In addition, our Super Duplex UNS S32760 Lap Joint Flanges offers high resistance to crevice corrosion and stress corrosion cracking.

These Super Duplex UNS S32760 Ring Type Joint Flanges has good weldability, where post weld heat treatment is not necessary. Our Super Duplex UNS S32760 Orifice Flanges is widely used in oil and gas, marine, paper manufacturing, chemical processing environments and sewage treatment due to its excellent corrosion resistance in cold and elevated temperatures. The copper content in these Super Duplex UNS S32760 Spectacle Blind Flanges permits excellent resistance to corrosion in many non-oxidizing and mineral acids like hydrochloric and sulfuric acid.

UNS S32760 Super Duplex Flanges Chemical Composition

S32750 / S32760 C N P Si Mn Mo Ni Cr S Other
0.030 0.24/0.32 0.035 0.80 1.20 3.0/5.0 6.00/8.00 24.0/26.0 0.020 Cu:0.50



Super Duplex Steel S32760 Flanges Mechanical Properties

S32750 / S32760 Density Melting Point Yield Strength (0.2%Offset) Tensile Strength Elongation
7.8 g/cm3 1350 °C (2460 °F) Psi – 80000 , MPa – 550 Psi – 116000 , MPa – 800 15 %



Equivalent Grades for Super Duplex UNS S32760 Flanges

STANDARD UNS WERKSTOFF NR.
Super Duplex S32750 S32760 1.4410
Super Duplex S32760 S32760 1.4410
