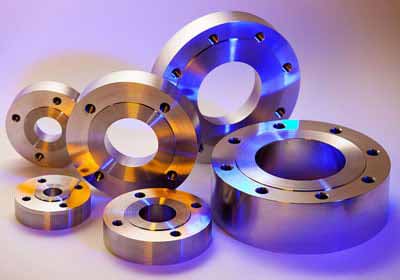

SUPER DUPLEX STEEL S32750 FLANGES

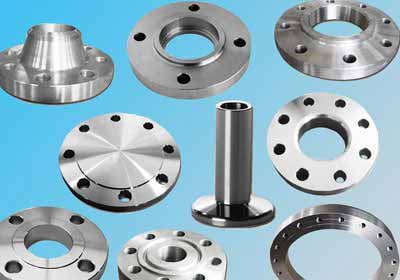

SUPER DUPLEX STEEL S32750 FLANGES - Image 2

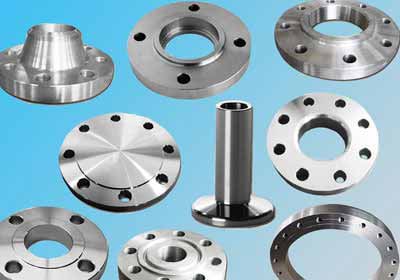

SUPER DUPLEX STEEL S32750 FLANGES - Image 3

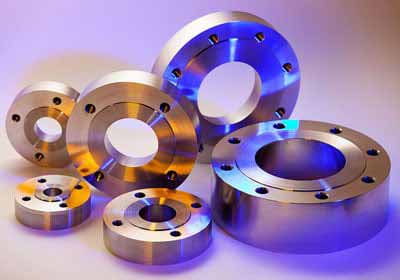

SUPER DUPLEX STEEL S32750 FLANGES - Image 4

SUPER DUPLEX STEEL S32750 FLANGES

SPECIFICATIONS

Super Duplex Flanges are available in different grades and standards. Some of the standard features these are made available in include
Specifications : ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc
Standard : ASTM A182 / ASME SA182
Dimensions : ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc
Size : ½” to 24″
Class : 150#, 300#, 600#, 900#, 1500#, 2500#
Form : Slip on Flanges – SORF, Weld neck Flanges – WNRF, Socket weld Flanges – SWRF, Blind Flanges – BLRF Lapped joint Flanges, Screwed Flanges, Long weld neck Flanges, Reducing Flanges, Spectacle Flanges, Ring joint Flanges

Category:
Contact Us
Request a Quote

PT. Cahaya Bina Baja is a distributor of Super Duplex Steel UNS S32750 Flanges, which has high corrosion resistance. The chemical composition, and a high chromium and molybdenum content in Super Duplex UNS S32750 Slip On Raised Flanges, ensures high tensile strengths and exhibits high thermal conductivity and low thermal expansion. Super Duplex Steel UNS S32750 Blind Raised Flanges is supplied with a PREN which guarantees high resistance to pitting corrosion. Super Duplex Steel UNS S32750 Weld Neck Flanges is often used in pollution control systems, wet scrubbers, fans and pumps, incinerators, flue gas de-sulfurisation (FGD), etc. The inter-pass weld temperature in Super Duplex Steel UNS S32750 Socket Weld Flanges should not exceed 300 ºF or the weld integrity can be adversely affected. With respect to the Ferritic part of duplex edifice, Super Duplex Steel UNS S32750 Threaded Flanges is extremely resilient to SCC in earnest chloride comprising atmospheres. Solution annealing in Super Duplex Steel UNS S32750 Lap Joint Flanges should be done after hot working.

Super Duplex Steel UNS S32750 Ring Type Joint Flanges is also used for organic acid plants, also when process solutions are contaminated with e.g. chlorides. On the other hand, for the reason that scraping in these Super Duplex Steel UNS S32750 Orifice Flanges is rather hard in contrast by means of Stainless Steel 304, alkali involvement prior to acid preserving, and if conceivable, shot attacking are very operational.

UNS S32760 Super Duplex Flanges Chemical Composition

S32750 / S32760 C N P Si Mn Mo Ni Cr S Other
0.030 0.24/0.32 0.035 0.80 1.20 3.0/5.0 6.00/8.00 24.0/26.0 0.020 Cu:0.50



Super Duplex Steel S32760 Flanges Mechanical Properties

S32750 / S32760 Density Melting Point Yield Strength (0.2%Offset) Tensile Strength Elongation
7.8 g/cm3 1350 °C (2460 °F) Psi – 80000 , MPa – 550 Psi – 116000 , MPa – 800 15 %



Equivalent Grades for Super Duplex UNS S32760 Flanges

STANDARD UNS WERKSTOFF NR.
Super Duplex S32750 S32750 1.4410
Super Duplex S32760 S32760 1.4410
